Machine Shop Services

Featuring full machining capabilities for your project. Here are some of our machines

Machining your components to better-than-new blueprinted specs

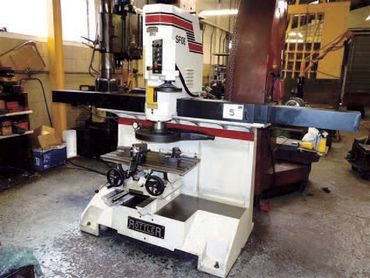

Rottler SFOE cylinder head and block resurface machine

Tramm 496 Jet Boat Marine Engine

Machine Shop Operations

Rottler SFOE - Milling cylinder heads CBN or PCD gas or diesel with MLS gasket capabilities

Decking blocks V8 V6 6 4 cylinder engine parallel to mains

Sunnen VGS-20 - Complete cylinder head seat and guide machine operations include guide work, hardened seats, 3 and 5 angle valve job seat work, machine guides for PC or Viton seals, valve spring seats cut, machine for screw in studs

Sunnen CV-616 automatic cylinder hone for precision engine block cylinder honing (with over 15 torque plates available)

Bridgeport Milling machine with power feed and digital DRO for unparalleled accuracy and machining operations only limited to your imagination

10" Lathe for just about everything else fabrication etc

Rebel Mig Tig and Stick welder AC and DC for all welding types including aluminum

Sioux 2075 valve grinding machine for grinding faces, tips and chamfers of all steel, stainless and titanium valves. We have the latest Accu-Chuck addition upgrade to chuck for accuracy on valves holding .0002" runout tested

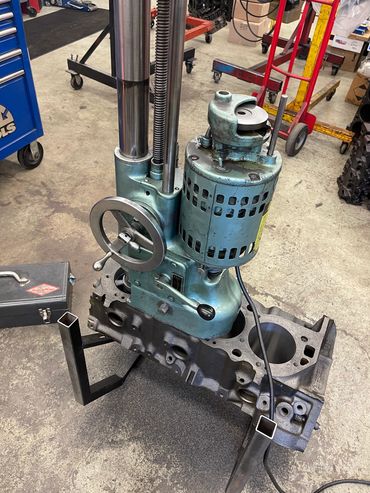

Kwik-way Model FW boring bar for boring engine blocks before hone operation

Mitutoyo SF-210 Profilometer for testing surface finish on all machining operations especially final hone to verify perfect piston ring finish every time a block is honed and also Ra finish on cylinder head surfaces and blocks to meet specifications of head gaskets being used including Multi Layer Steel (MLS) and conventional composition head gaskets

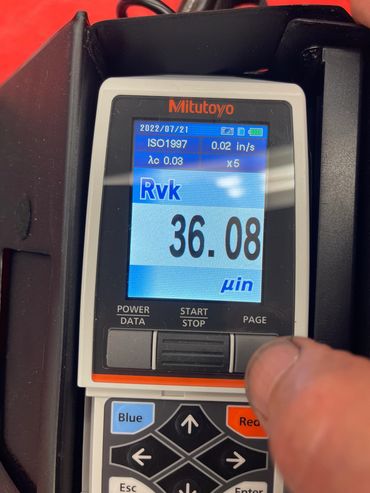

Measuring cylinder surface finish with Mitutoyo SF-210 Profilometer

MLS surface finish of 18.4Ra on aluminum head using Rottler SFOE resurface machine
